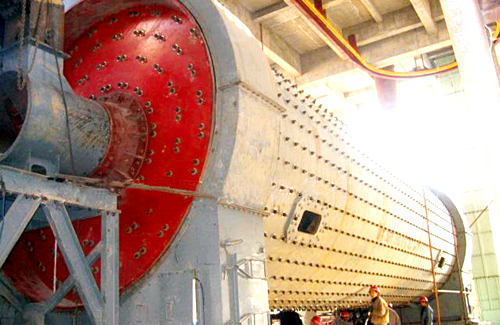

Cement mill is the key grinding equipment after the crushing process. The mill is widely used in the manufacturing industries such as cement, silicate, new building material, refractory materials, fertilizer, ferrous metal, nonferrous metal and glass ceramics. It can be also used for dry and wet grinding for all kinds of ores and other abrasive material.

Technical parameters for cement mill

Model (M)

Capacity (T/H)

Mill form

Driving method

Power
(KW)

Reducer

Weight (T)

Remark

Model

Ratio

Ø2.2×7m

8-9

Open circuit

Edge

380

ZD70

5

54

Ø2.2×7.5m

10-11

Open circuit

Edge

380

ZD70

5

63

Ø2.2×8m

10-12

Open circuit

Edge

380

ZD70

5

65

Ø2.2×9.5m

14-16

Open circuit

Edge

475

ZD70

5

70

Ø2.4×10m

18-19

Open circuit

Edge

630

JR75

5.64

94.5

Ø2.4×11m

19-21

Open circuit

    Edge

630

RZD80

6.3

99.2

Ø2.4×13m

21-23

Open circuit

Edge

800

MBY710

7.1

115.2

Ø2.6×13m

28-32

Open circuit

Edge

1000

MBY800

7.1

148

Ø2.6×13m

28-32

Open circuit

Center

1000

MFY100

19.5

101.73

Without motor

Ø3×12m

32-35

Open circuit

Edge

1250

MBY900

7.1

168.6

Without motor

Ø3×13m

34-37

Open circuit

Edge

1400

MBY900

7.1

172.26

 Without motor

Ø3.2×13m

45-50

Open circuit

Edge

1600

MBY1000

7.1

196.26

 Without motor

Ø3.8×13m

60-62

Open circuit

Center

2500

MFY250

16.5

204

Without motor

Ø4.2×13m

85-87

Open circuit

Center

3530

JQS3550

15.6

254

Without motor
