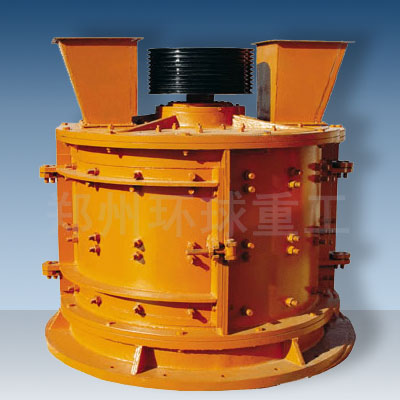

Vertical joint crusher

Combined with international congeneric crusher technology, vertical joint crusher is a kind of new-style product for fine crushing and coarse grinding with optimized technical parameters. The crusher is mainly used for crushing medium cement raw material and clinker, which provide an ideal equipment for reconstruction of cement plant or building new cement production line. It also applies to the crushing of medium-hard ores like iron ore, sandstone, gypsum, blast furnace slag, coal refuse, lump coal, etc. The advantages include big reduction ratio, low energy consumption, stable operation, compact structure, easy maintenance, like that.

Main technical parameters for vertical joint crusher

Model

Input size(mm)

Output size (mm)

Capacity (t/h)

Rotate speed (r/min)

Power
(kw)

Dimension  (mm)

PFL-800

<100

<3-5 60-90%

10-20

934

22

2100×1200×1700

PFL-1000

<120

<3-5 60-90%

20-40

469

37

2600×1400×1900

PFL-1250

<150

<3-5 60-90%

40-70

530

75

2800×1600×2100

PFL-1500

<180

<3-5 60-90%

70-100

495

132

3100×1900×2200

PFL-1750

<200

<3-5 60-90%

130-190

424

160

3710×2360×2390

PFL-2000

<220

<3-5 60-90%

100-160

370

185

4100×2660×2620
