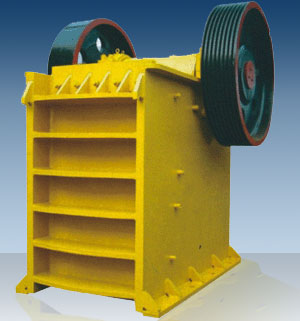

Jaw crusher is widely used in the world market nowadays and has the features of high reduction ratio, simple structure, and easy maintenance. It has two main types as primary crusher and secondary crusher. The compressive resistance of the crushed material is up to 320MPa. The large and medium-sized crushers are the key products in our company and stand in the front of the industry in the aspects of crusher design and production.

Main technical parameters for jaw crusher

model

Input size
(mm）

Max. input size
(mm)

Adjusting range of discharging opening
(mm)

Capacity
(t/h)

Rotation
speed of
eccentric
shaft
(r/min)

Motor power
(kw)

Total weight
(t)

Dimension
（L×W×H）
(mm)

PE-150×250

150×250

125

10-40

1-3

250

5.5

0.8

720×660×850

PE-200×300

200×300

180

15-50

2-6

260

7.5

1.2

910×750×990

PE-200×350

200×350

180

18-70

3-10

260

11

1.5

1000×870×990

PE-250×400

250×400

210

20-60

5-20

300

15

2.8

1300×1090×1270

PE-400×600

400×600

340

40-100

16-60

275

30

7

1730×1730×1630

PE-500×750

500×750

425

50-100

40-110

275

55

12

1980×2080×1870

PE-600×750

600×750

500

150-200

80-240

275

55

15.8

2070×2000×1920

PE-600×900

600×900

500

65-160

50-180

250

55

17

2190×2206×2300

PE-750×1060

750×1060

630

80-140

110-320

250

90-110

29

2660×2430×2800

PE-800×1060

800×1060

640

160-220

130-330

250

110

29.8

2710×2430×2800

PE-830×1060

830×1060

650

160-220

150-336

250

110

30.7

2740×2430×2800

PE-870×1060

870×1060

660

200-260

190-336

250

110

31.5

2810×2430×2800

PE-900×1060

900×1060

685

230-290

230-390

250

110

33

2870×2420×2940

PE-900×1200

900×1200

750

95-165

220-450

200

110

52

3380×2870×3330

PE-1000×1200

1000×1200

850

195-265

315-500

200

110

55

3480×2876×3330

PE-1200×1500

1200×1500

1020

150-300

400-800

180

160

100.9

4200×3300×3500

PEX-150×750

150×750

120

18-48

8-25

320

15

3.8

1200×1530×1060

PEX-250×750

250×750

210

25-60

13-35

330

30

5.5

1380×1750×1540

PEX-250×1000

250×1000

210

25-60

16-52

330

30

7

1560×1950×1390

PEX-250×1200

250×1200

210

25-60

20-61

330

37

9.7

2140×1660×1500

PEX-300×1300

300×1300

250

20-90

16-105

300

55

15.6

2720×1950×1600
