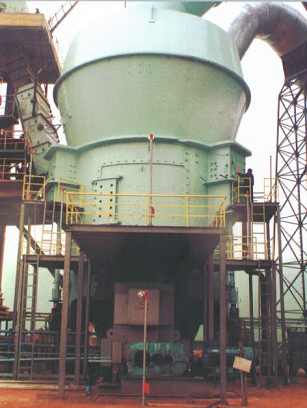

New type vertical mill is a high efficiency energy saving grinding system with drying capabilities. Our vertical mill has been widely used in cement, power, metallurgy and non-ferrous ore industries in China, and also sold abroad.
| Technical parameter of vertical raw material mill |
| Specification |
LS2115 |
LS2417 |
LS2921 |
LS3123> |
LS3626 |
LS4028 |
LS4531 |
| Dia. Of grinding disc. (mm) |
2100 |
2450 |
2900 |
3150 |
3600 |
4000 |
4500 |
| Dia. Of grinding roll(mm) |
1500 |
1750 |
2100 |
2300 |
2650 |
2850 |
3150 |
| Feed size (mm) |
50 |
80 |
80 |
80 |
90 |
100 |
110 |
| Capacity (t/h) |
44 |
75 |
110 |
150> |
190 |
310 |
360 |
| Power of main motor (kW) |
400 |
630 |
1000 |
1120 |
1950 |
3100 |
3600 |
| Rotating speed of grinding disc |
31.6 |
29.5 |
26.8 |
25 |
25.2 |
22.9 |
21.6 |
| Total weight |
104t |
123t |
210t |
246t |
380t |
630t |
787t |
|
